Peugeot 306 cabriolet power hood problem
2 May 2009, 5:46 PM
|
Pandora
Joined 18 Mar 2009
15 posts
|
Try joining this lot, http://www.peugeot306cabrioletclub.co.uk they have a member who makes and sells them and can provide instructions for replacing them, look on the left of the Forum page for the advert under SHOP
|
Peugeot 306 cabriolet power hood problem
10 May 2009, 11:25 AM
|
steveconcah
Joined 10 May 2009
3 posts
|
Where do you top up the hydraulic oil for the power hood. Have just taken the hard top off and discovered a leak.
Steve.
|
Peugeot 306 cabriolet power hood problem
14 May 2009, 3:23 PM
|
Trotski
Joined 2 Apr 2009
15 posts
|
If you look inside the boot on the right hand side, take off the cover for the rear lens and the covering around the inside of the boot, there you will find the hydraulic pump. Fill the pump between Min and Max line, do not overfill bearing in mind that the pump will sit on a slant in the boot.
If you are just testing to find your leak fill the pump half way to minimum so not to waste the fluid as its expensive stuff. Hope this helps. Trokski
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 10:45 AM
|
steveconcah
Joined 10 May 2009
3 posts
|
Thanks Trokski It's dead easy when you know where it is. I'll put all the seats back in now.
Looks like a hose has been trapped when the hood has been lowered, any ideas whre to locate replacements?.
Steve.
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 11:22 AM
|
malcolm
Joined 25 Nov 2004
22 posts
|
|
Hiya Steve. If you join our club at http://www.peugeot306cabrioletclub.co.uk we have a member who manufactures the pipes. They are far cheaper than pug replacements and also stronger. I will assume that the pipe that has chaffed is down the side where the frame rubs. This is a common area and on the site there is a guide how to protect them there. Good luck mate. Malc.
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 1:20 PM
|
jross751
Joined 15 May 2009
5 posts
|
Hi I have 2001 cabriolet and had the hydraulic oil filled up about a month ago costing me £50 noticed a leak when I was cleaning it last weekend the leak is on the ram on the drivers side took it into peugeot dealer they are asking £906 anyone got any ideas or help how to fix it a little cheaper!! Thanks
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 2:57 PM
 Edited by malcolm 15 May 2009, 3:06 PM
|
malcolm
Joined 25 Nov 2004
22 posts
|
|
Hi 751,,,noooo dont go to peugeot ,,,.Your best bet for rams is ebay or http://www.1stchoice.co.uk which is a broker for over 250 breakers yards. It is unusuall for a ram to leak, are you sure its not the connector where it joins the ram?? As far as £50 to refill the reservois,,,halfrauds or basically most motor shops grade 32 hydraulic oil and do it yourself its an easy job as the system is self priming.
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 5:17 PM
|
jross751
Joined 15 May 2009
5 posts
|
Hi just fetched the car back from garage and they are saying its the hydraulic cables not the ram. That's what they charging £900. It's the one that is on the right hand side that powers the roof .
£450 parts the rest labour wow
i am looking at doing it myself , is it an hard job and whats the best manual to get haynes ?? etc ect .
cheers
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 6:05 PM
|
Pandora
Joined 18 Mar 2009
15 posts
|
Don't forget that you don't have to go to Peugeot to get the hydraulic fluid, any will do so long as it is 32 grade (it'll say so on the container) and it's considerably cheaper from your local motor factors
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 6:07 PM
|
Pandora
Joined 18 Mar 2009
15 posts
|
Join http://www.cab306.com and check out the Shop, there are hoses available there at very competitive prices
|
Peugeot 306 cabriolet power hood problem
15 May 2009, 6:32 PM
Edited by malcolm 15 May 2009, 6:49 PM
|
malcolm
Joined 25 Nov 2004
22 posts
|
|
I say again (pandora please read previous posts) our club .http://www.peugeot306cabrioletclub.co.uk has a member who makes new hoses for the cabs. The club is free to join and all the members collectively have a wealth of knowledge re 306 cabs phase 1,2 and 3.
jross, I assume you mean hydraulic PIPES not cables. The only real cables involved in the roof are the 2 that control the lid claws. Now,,, it IS a job you can do yourself and save £100s of pug pounds,,,it is however seriously reccomended you join us at the club,,,there is in the ''guides'' section instructions re replacing hydraulic roof pipes,,,and of course you can get them/it from another member at minimal costs. Regarding a manual,,,well,,,haynes do not do a cab specific manual. a 306 manual for the correct phase will cover most engine bodywork items BUT not the roof on a cab...This is why the club is so very very useful with the collective knowledge and the french links, Good luck chap, Malcolm.
|
Peugeot 306 cabriolet power hood problem
16 May 2009, 4:07 PM
|
jross751
Joined 15 May 2009
5 posts
|
hi
i just want to say thank you for all the support and advice you have all given me .
this is my first pug i have had ,and thought after i was quoted nearly a grand for roof repair ( dealers )it was a mistake but your help has changed all that and again i thank you all
i have just one more question , on the other website it states different phase`s of pugs , mine is a 2001 model so would that make it a phase 3 ??? sorry to sound so thick !!!!
cheers
|
Peugeot 306 cabriolet power hood problem
4 June 2009, 10:41 AM
|
0shane0
Joined 2 Jun 2009
6 posts
|
hi malcolm i have the same problem that i have overturned the nut in the boot would you by any chance have another spare one for sale or would you be able to tell me how to repair mine thanks shane
|
Peugeot 306 cabriolet power hood problem
4 June 2009, 11:05 AM
|
malcolm
Joined 25 Nov 2004
22 posts
|
|

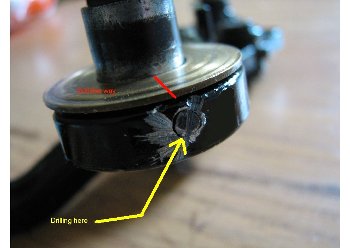

Hi Shane,,,sorry but I have no spares at the moment. However it is easy to repair !! dont panik,,,Strip the mechanism off and the piece you need is as per the attached photo. Simply drill right through the ally and the steel spindle then force in and through a roll pin type rivit,,,smooth off the ends if they are sticking out,,,then you have a repaired unit. On re-assembly put loads of grease on every moving part as there are so many cantalevers on the mechanism they all rely on each other. When refitted do a full manual reset and I bet you it will all work again...
|
Peugeot 306 cabriolet power hood problem
4 June 2009, 11:07 AM
Edited by malcolm 4 June 2009, 11:11 AM
|
malcolm
Joined 25 Nov 2004
22 posts
|
|
another pic of the repaired piece...I suggest you join our 306 cabriolet club as the expertise and advice on there is second to none,,,its all free,,,and offers meets,,,guides on how to do things on these lovely cars,,,I run an old one an original phase1 1995 and I love it,,,btw I am a geriatric boy racer at 64 ...http://www.peugeot306cabrioletclub.co.uk
|
Peugeot 306 cabriolet power hood problem
4 June 2009, 11:26 AM
|
0shane0
Joined 2 Jun 2009
6 posts
|
Thanks Malcolm will try this & let you know the result i have already joined the 306 club thanks again shane
|
Peugeot 306 cabriolet power hood problem
4 June 2009, 2:37 PM
|
0shane0
Joined 2 Jun 2009
6 posts
|
Hi Malcolm shane here again thank you very very much all sorted now you are a star
|
Peugeot 306 cabriolet power hood problem
7 June 2009, 6:59 PM
|
Cas
Joined 7 Jun 2009
3 posts
|
My 306 electric roof opens fine, but won't close properly. The front section of the rood flops down over the windscreen, and the frame section under the rear window doesn't lift, so the plastic cover has nowhere to go and is left upright. Any ideas on how to fix it?
|
Peugeot 306 cabriolet power hood problem
7 June 2009, 7:16 PM
|
0shane0
Joined 2 Jun 2009
6 posts
|
Hi SOS I have no idea I would join the 306 cabriolet club it's free to join & could be helpfull SOS again shane
|
Peugeot 306 cabriolet power hood problem
7 June 2009, 7:26 PM
|
malcolm
Joined 25 Nov 2004
22 posts
|
|
Hello Cas.
Your problem stems from I believe worn elastics,,,yes elastics. The whole roof is tensioned by elastic strips about 2 inches wide.These control the speed at which the various parts fold and open.Each movement is controlled again by the roof ecu which tells the rams to move up or down... I suggest that when closing the roof you take your finger off the switch just b4 the roof drops onto the windscreen,catch the roof and hold it up with the right hand and repush the switch with your left,,the rear window should now rise,the lid close and the roof will gently be allowed to drop dow to the screen,.This is a common problem and the elstics can be replaced as a D I Y job easilt.
