loose pipe on 2.0l engine(synergie)

Messages 1 to 9 of 9.

loose pipe on 2.0l engine(synergie)
13 November 2008, 9:22 AM

Andy
Joined 12 Jul 2008
7 posts

I have replaced the spark plugs on my 1996 synergie.to access all the plugs i had to remove some of the air cooling pipes(wrong technical stuff but i hope you know what i mean)and unfortunately i have a rubber pipe approx 5mm thick that pumps out air intermitently going nowhere.the engine runs but appears to be running "rich".THe pipe is only 8 inch long and doesnt appear to have anywhere obvious to go
Any advice much appreciated
Andy

Discussion Archived

loose pipe on 2.0l engine(synergie)
23 November 2008, 10:59 PM

L.B.
Joined 5 Dec 2005
3308 posts

Could you take a picture with a digi camera and post it on here and that would make it easier for us to determine what the pipe is.
Sounds like a fuel pressure regulator pipe or even a map sensor pipe.

___________________

THERE'S NO REPLACEMENT FOR DISPLACEMENT !

Discussion Archived

loose pipe on 2.0l engine(synergie)
25 November 2008, 11:05 AM

Andy
Joined 12 Jul 2008
7 posts

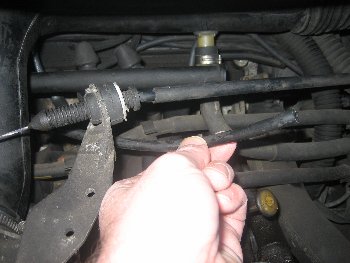

tried to take picture

Discussion Archived

loose pipe on 2.0l engine(synergie)
25 November 2008, 11:06 AM

Andy
Joined 12 Jul 2008
7 posts

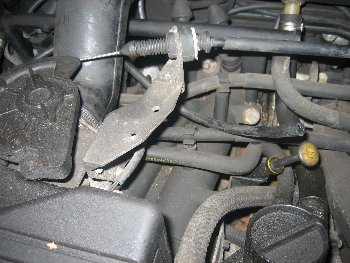

heres another

Discussion Archived

loose pipe on 2.0l engine(synergie)
25 November 2008, 11:08 AM

Andy
Joined 12 Jul 2008
7 posts

And another.
Thanks so much for reply-i know the pipe goes somewhere but i just cant see it -a bit frustrating lol

Discussion Archived

loose pipe on 2.0l engine(synergie)
26 November 2008, 10:29 PM

L.B.
Joined 5 Dec 2005
3308 posts

Sorry for the slow reply, been away from home !
Anyway just looking at your pictures and see the pipe.
You say that it seems to blow out air intermittently yeah ? is the air oily smelling and more pressure coming out when revved up ?
If so then it's more than likely a breather pipe.
Does the other end of the pipe (connected end) go into the cam cover or thicker looking pipe ?
Most pipes of that diameter usually connect up to the inlet manifold or throttle body at a vacuum take of point.
If you can find where the other end is still connected to that will help make things a bit easier.

___________________

THERE'S NO REPLACEMENT FOR DISPLACEMENT !

Discussion Archived

loose pipe on 2.0l engine(synergie)
27 November 2008, 10:04 AM

Edited by Andy 27 November 2008, 10:28 AM

Andy
Joined 12 Jul 2008
7 posts

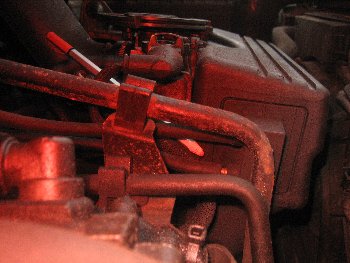

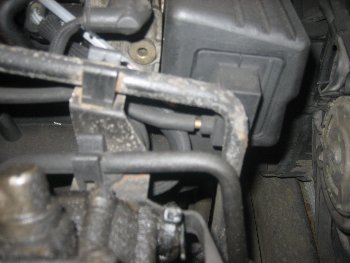

thanks again for getting back.the air does suck intermitently but appears to suck consistently when revved.i have tried to indicate where the pipe goes into with a pencil-there is just a small piece of copper piping showing where it goes into the cover next to the throttle.the engine is smelling as if on full choke but not excesively revving
Thanks for your help Andy

Discussion Archived

loose pipe on 2.0l engine(synergie)
27 November 2008, 10:30 AM

Andy
Joined 12 Jul 2008
7 posts

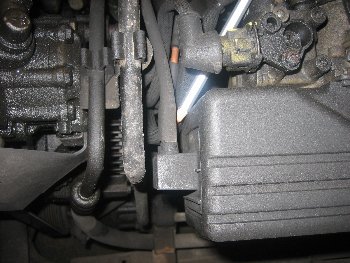

another

Discussion Archived

loose pipe on 2.0l engine(synergie)
27 November 2008, 10:31 AM

Andy
Joined 12 Jul 2008
7 posts

another!

Discussion Archived
