peugeot 306 timing marks?

Messages 1 to 4 of 4.

peugeot 306 timing marks? 18 October 2009, 4:21 PM

batman Joined 18 Oct 2009 1 posts

peugeot 306 timing marks? 25 October 2009, 1:22 AM

Al's Pug Joined 7 Feb 2005 1735 posts

have you sorted this now?

i've got a manual out in the garage so I could look it up 4 you if you still stuck ?

Al


___________________

if it aint broke don't fix it !

peugeot 306 timing marks? 30 October 2009, 11:27 PM

Al's Pug Joined 7 Feb 2005 1735 posts

Do you mean the engine timing or the ign timing ?

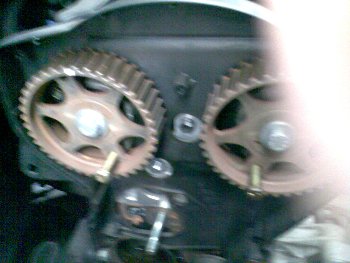

the engine timing is set by inserting a 8 mm bolt or similer through the hole on the bottom pulley into the corresponding one on the block behind and the same with the cam pulley above, if both holes align the engine timing is set.
there re no ign timing marks on the pulley, as the ign is done by the ECU via the crank sensor. so as long as the engine is timed up & the crank sesor and ECU are working, your sorted.

Al


___________________

if it aint broke don't fix it !

peugeot 306 timing marks? 21 November 2009, 7:33 AM

lee Joined 21 Nov 2009 1 posts
