ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 3:56 PM
|
frank
Joined 4 Aug 2008
3 posts
|
Hi Gary
Thanks and same as joe let me know how and when to order please
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 4:00 PM
|
roy
Joined 10 Feb 2009
5 posts
|
Hi
Message for Gary or Keith can one or both of u help a fridge works ok on electric but on gas pilot ligh works but turn dial and burner does not trip in
Roy
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 4:57 PM
|
peter
Joined 24 Feb 2009
7 posts
|
Hi Gary,Still looking for the fault causing my fan to only run slowly.
Took out the loom between switch and fan pcb, checked continuity and for good connections, all appeared ok. Ran it before putting pcb and fan cover back - still slow and noticed that component on pcb was very hot, burnt my finger in fact. Thin grey 'resistory thing' .Should it be that hot? If it needs a new pcb, are you able to supply one. Regards, Peter
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 5:35 PM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
Yes Peter it should get hot, it's absorbing amperage/energy so by getting hot is slowing the motor down, however this should depend on the three legged component on the board which in turn is controlled by the switch.
I've a feeling it will be this transistor that's failed in the 'slow' position and needs replacing.
One other possibility is the fan motor is faulty, try putting 12v direct to it to test.
___________________
website: http://www.arcsystems.biz
email: [Log in to view email]If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 5:40 PM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
Roy, what model number is your fridge? RMxxx, or, has it got a thermostat for the gas side? or three positions for the gas flame on the control knob?
___________________
website: http://www.arcsystems.biz
email: [Log in to view email]If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 5:50 PM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
Frank and Joe, don't normally give prices on the forum because they go out of date, but to save time the reset kit is £23.50 inclusive. Further as my websites been hacked I'll give the address here so you know where to send the cheque made to 'Arc Systems' ready for my return 13 Far Street, Bradmore, Nottingham, NG11 6PF. I'm not there but someone always is
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
25 February 2009, 6:28 PM
|
peter
Joined 24 Feb 2009
7 posts
|
Hi Gary,I meant to ask you if I could try putting 12v direct to the fan ,to check it out. Will do this tomorrow and if ok, will order a new pcb.
Are you able to supply one,as it would only be fair to you. Regards, Peter.
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
28 February 2009, 5:14 PM
|
peter
Joined 24 Feb 2009
7 posts
|
Gary,Just a message to thank you for your expert advice. Have changed the fan pcb and all working correctly. Away for a few weeks, from mid March, but on return will be looking to improve the 240v heating by getting a remote sensor, possibly up dating
the relays, so will be in touch. Thanks again, Peter
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
28 February 2009, 5:20 PM
|
stewart
Joined 28 Dec 2008
2 posts
|
hi gary i enquired once before about my carver water heater i now know that it is overheating when ran on gas. electric is fine i have been advised this is the burner module gone and priced to replace at 196 .oo pounds supplied and fitted is this a good price i am not confident enough to fit myself thank you in advance stewart
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
28 February 2009, 6:36 PM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
Stewart, someone is taking the mick! a module brand new can be expensive at anything up to £125 but it takes under 5 minutes to fit!!If you do feel like fitting one of my serviced exchange modules yourself, (being designed to 'self fit' it is very straight forward), you will then save about 2/3rds of that £196.
If not and you tell the area you live, I might also be able to suggest someone local to do it for you for a reasonable fee.
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
2 March 2009, 8:58 PM
|
amberbeau
Joined 21 Sep 2008
33 posts
|
|
hi can anyone tell me if you can buy new jets for a carver/trumatic 3002 gas fire or do i need to buy a new fire £400+ thanks tony
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
3 March 2009, 4:07 AM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
I'm not surprised you are concerned about forking out £400 for a new fire!?The Carver 3002 is a re-badged Truma 3002, they are then one in the same fire!! all your fire needs (should it actually need them) is a new pair of jets. I've got a bag full of new Carver/Truma 3002 jets but my concern is it's does not need them and something else is amiss? I'm wondering if in fact the 'gauze' on the top of the main burner is loose and lifting when it gets hot, this will cause the flame pattern to be erratic same as if the jet was at fault?
Or simple a partly blocked gas/air inlet tube inside the burner if the flame is yellow
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
3 March 2009, 4:09 AM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
I'm not surprised you are concerned about forking out £400 for a new fire!?The Carver 3002 is a re-badged Truma 3002, they are then one in the same fire!! all your fire needs (should it actually need them) is a new pair of jets. I've got a bag full of new Carver/Truma 3002 jets but my concern is it's does not need them and something else is amiss? I'm wondering if in fact the 'gauze' on the top of the main burner is loose and allowing it to lift when it gets hot, this will cause the flame pattern to be erratic same as if the jet was at fault? Or simply a partly obstructed gas/air inlet tube inside the burner if the flame is yellow, a bit of a spiders web is generally the cause of this.
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
3 March 2009, 6:16 AM
|
amberbeau
Joined 21 Sep 2008
33 posts
|
|
hi gary and thanks very much for your advice i will check everything but if i could buy some jets from you that would aliminate everything and would have a new fire if it has been overhauled thanks again and if you could let me know where i can send cheque/postal order for the jets
thanks again tony
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
3 March 2009, 11:57 AM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
Quote: and would have a new fire if it has been overhauledI can supply the jets when I return, but, I don't for one second think they will cure your problem by themselves let alone overhaul it!!
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
3 March 2009, 1:07 PM
|
amberbeau
Joined 21 Sep 2008
33 posts
|
|
hi gary and thanks so much i will wait untill you get back and then get the jets for the fire unless you know somebody that has a good reconditioned one regards tony and thanks for you help
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
4 March 2009, 9:46 PM
|
nellymcl
Joined 4 Mar 2009
4 posts
|
Hi

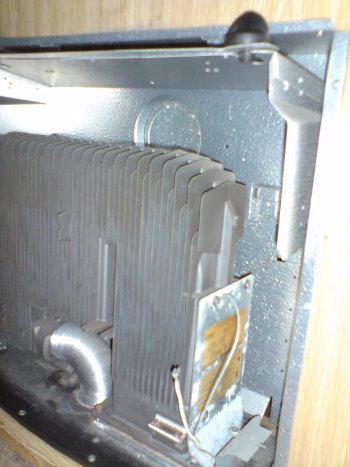

New here but looks like the best place for my question. I have a Carver 2000P Space Heater missing the connecting rod from the control knob. I am not sure if there is a cable missing also Please see my photo.
Any advise and where I could get the parts would be great. I have the bottom piece (controller) but its not in the pic.
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
5 March 2009, 2:52 AM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
I have plenty of the steel rods that connect the piezo holder to control knob, what I don't have is the holder itself.Two wires are required, one from piezo to burner for spark, the other is an earth wire from the bottom of the holder to one of the 8mm brass nuts that hold the silver coloured support bracket.
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
5 March 2009, 8:12 AM
|
nellymcl
Joined 4 Mar 2009
4 posts
|
Thanks Gary
How do I get my hands on one of these rods? Ihave the holder, I think. The missing rod goes in the top and the bottom rod out of the holder goes into the baseblate where I take it the main gas control is?Cheers
N
|
ALL CARVER CASCADE WATER HEATER, GAS FIRE, FANMASTER,P4 QUESTIONS HERE
5 March 2009, 8:25 AM
|
gary
Joined 13 Mar 2002
2288 posts
|
|
You will have to wait until I return, which ain't very long now...unfortunately!!My address details are above on this page and you can email direct from link below
___________________
website: http://www.arcsystems.biz
email: [Log in to view email] If you want to add your own question, just click on any 'reply to this message'
